API Methods: createReport Endpoint


The CheckCentral API provides an endpoint for programmatically adding reports.


To add a new report through the API, an API token with Read/Write access is required. Organization administrators can create tokens through the API portal on your dashboard.

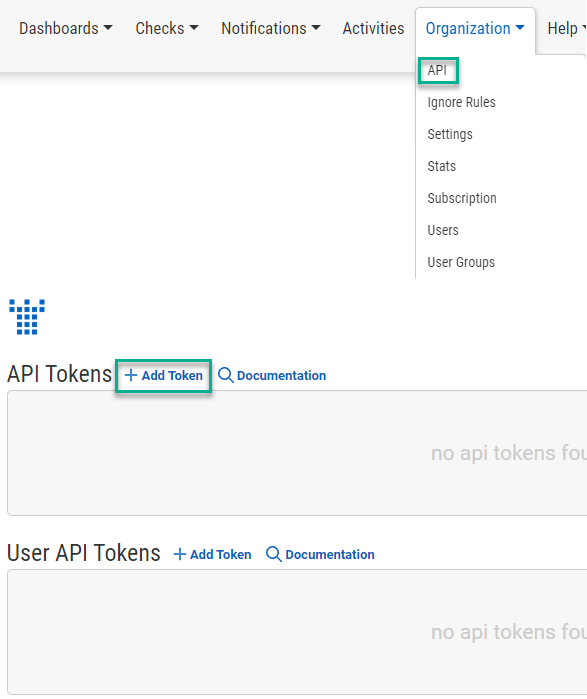

API Menu and Token Creation




"User API Tokens" will only return data available to the user based on their granted permissions and user groups. Regular "API Tokens" have the Access Level given upon creation.


The endpoint is located at
https://api.checkcentral.cc/createReport/?apiToken=APITOKEN
 where the APITOKEN placeholder is replaced with your valid token.


The request must be made with the
Content-Type
 header set to
application/json
. The body of the request should contain the properties below to configure the new report's settings. Any properties not passed will be set to their default value.


For example, to add a new report you could send the following json in the body of the request:


Code
Copy
Select All
{
  "name": "Dashboard Report",
  "description": "",
  "report_type": "Dashboard",
  "format": "HTML",
  "content": {
    "dashboard": "d45deb0a-1752-4441-b822-52b88d7c7de1"
  },
  "interval_type": "Day",
  "interval_value": 1,
  "report_time": 540,
  "recipients": {
    "org_wide": true,
    "usergroups": [],
    "users": [],
    "emails": [
        "extra@example.com"
    ]
  }
}








The report data must include a
name
 property as well as any data required to generate the report such as check group IDs or dashboard IDs.


The complete list of possible properties for report creation are as follows:


Report Structure


Parameter
        Type/Allowed Values
        Default



name


The name of the new report.


This parameter is required.


String




report_type


The type of the new report.


This parameter is required.



One of:



  • dashboard
    •

  • checkgroup
    •

  • check
    •

  • activity
    •

  • stats
    •

  • digest




description


A text description of the report. The description will be included in the body of emails delivering the report.

            String



source


The name for the new user.

            String



format


The output format for the report. Different report sources allow for different formats.


One of:


  • html
    •

  • pdf
    •

  • csv (activity and stats only)


For digest reports, the format will always be set to
embedded
.


filename


Set an optional filename to use for the report. Reports will be generated with a default filename that includes the date of the report and information such as the report type and content.


            String



content


Pass a json object to configure what content CheckCentral will include in the report.

            Report Content

{}



Report Content


The parameters below are nested elements for the
content
 parameter above.


Parameter
        	Type/Allowed Values
        	Default


check


Pass a check ID to to use for the report. This parameter is valid for
activity
,
check
, and
stats
 reports. Only one
check
 or
checkgroup
 may be configured for activity and stats reports.


This parameter is required for
check
 reports.


String




checkgroup

                Pass a checkgroup ID to use for the report. This parameter is valid for
activity
,
check group
, and
stats
 reports. Only one
check
 or
checkgroup
 may be configured for activity and stats reports.[/text]

String


[]




More API Documentation and Help


A full list of API Methods are available via the API page under your CheckCentral organization.


Log in to your account. Click "Organization" from the main menu, then "API."


API Menu


Click "Documentation."


Documentation


Here you'll see the list of Methods available, their permission requirements, their purpose, and the call limit per day.


API Methods


Click on any of the Methods to see a testing area with parameter requirements and an example of usage. Populate the fields and click "Send Test Request" to see the JSON Response.


Testing Area
